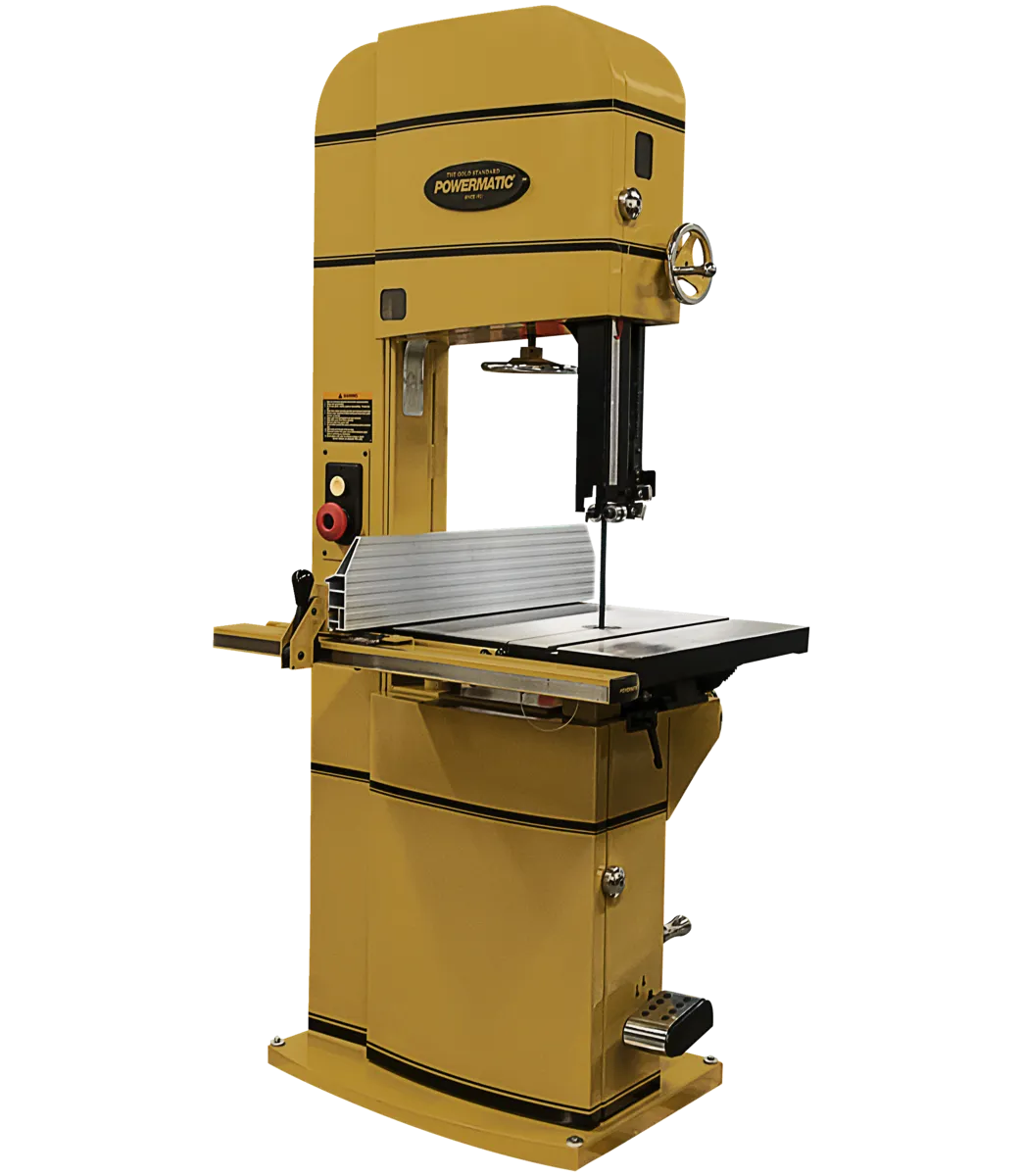

18” Bandsaw with Accu-Fence

Overview:

At Powermatic, we believe that ambition is the fuel that drives progress. Every product we engineer is born out of the same idea: How can we empower woodworkers to do more? In shops across the world, craftsmen are continually pushing the limits of their creativity, and in turn, challenging us to provide the best tools for the job. When we reimagined our line of bandsaws, we not only set out to meet their ambitions, but to exceed them. Larger projects and larger workpieces call for more power, more resaw capacity and more cast iron. This bandsaw also features the legendary quality, precision and attention to detail that has been helping woodworkers expand their ambition for more than ninety years.

Features:

• Computer balanced cast iron wheels reduce vibration
• Computer balanced cast iron wheels reduce vibration and noise
• Exclusive Powermatic T-square style Accu-Fence® maximizes accuracy and safety
• Micro-adjustable, virtually tool-less bearing guide system gives close blade control while reducing friction
• Oversized side plate can be used in the horizontal or vertical position
• Solid cast iron upper and lower wheels create the momentum needed for heavy resaw
• Special grooved thrust bearing stabilizes smaller blades
• Sturdy cast iron table and trunnion assembly offers maximum rigidity for large work pieces
• Accu-Fence has complete adjustability for aligning to blade and squaring to table

General Specifcations:

• Blade Length (In.) 160
• Minimum Saw Blade Width: 1/8in
• Maximum Saw Blade Width: 1-1/2in
• Blade Speed (SFPM): 2300/4400
• Cutting Capacity Height: 18in
• Cutting Capacity Width: 18in
• Table Tilt: 45° Right / 10° Left
• Table Height from Floor: 38in
• Dust Port Outside Diameter: 4in
• Dust Collection Minimum CFM Required (CFM): 600
• Prop 65: Cancer and Reproductive Harm
• Warranty: 5 Year
• Net weight: 840.0
• Gross Weight: 936.0

Single-Phase Motor Specs:

• Blade Wheel Motor: 5 HP 230V single-phase only
• Recommended Circuit Size (Amps.): 30

3-Phase 230V Motor Specs:

• Blade Wheel Motor: 5 HP 230/460V 3-phase, prewired 230V
• Recommended Circuit Size (Amps.): 20

3-Phase 460V Motor Specs:

• Blade Wheel Motor: 5 HP 230/460V 3-phase, prewired 460V
• Recommended Circuit Size (Amps.): 20

Some 460V machines may have 3-4 week delivery times. Please contact us at 570-584-2002 ext. 301 to check if you need an order rushed. Thank you.
