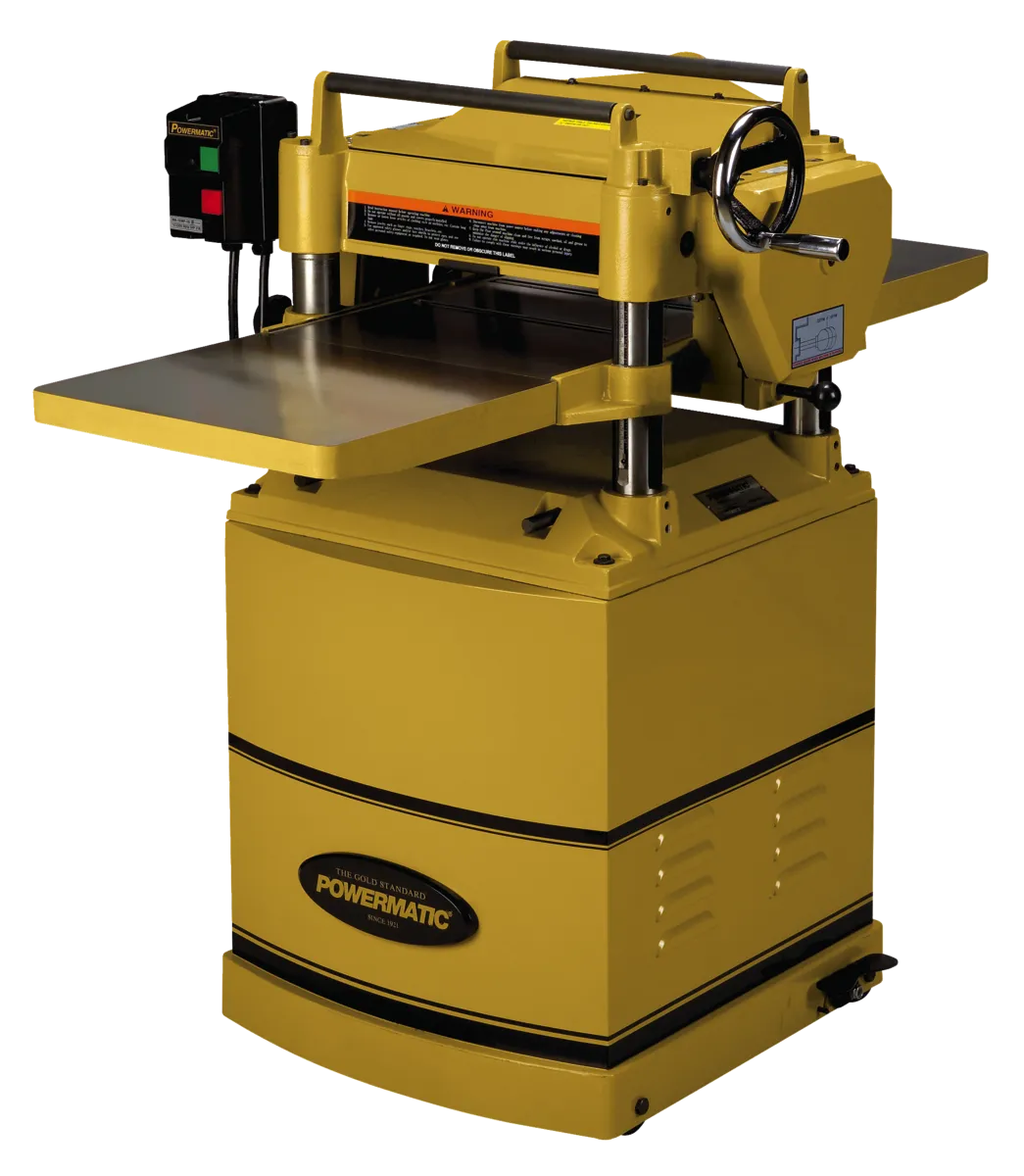

15" Planer with Helical Cutterhead

Overview:

The helical cutterhead on this Planer provides smoother cutting and a finer finish than conventional knives, and the 74 four-sided indexable carbide knife inserts do not require adjustment after installing. Three V-belts transfer maximum power from the 3HP motor to the cutterhead. Your workpiece will get substantial support from the precision ground cast iron table and two large extension wings. The 4" dust port angles the collection hose away from the work area. Stock return rollers atop the machine speed repetitive cuts. The serrated steel infeed and smooth steel outfeed roller allow for 1/8" maximum depth of cut and trouble-free operation. A 2-speed gearbox features an automatic chain tensioner. The one-piece welded steel stand has built-in lockable casters for easy movement around the shop.

Features:

• Angled dust chute with 4" port positions collection hose away from the work area while providing efficient chip and dust collection
• Large cast iron handwheel positions table quickly and easily
• Large, precision ground cast iron table and extensions provide maximum workpiece support
• Lockable built-in caster system allows for mobility in the shop
• Steel top-mounted return rollers speed repetitive cuts
• The helical cutterhead with 74 four-sided carbide knife inserts provides smoother, quieter cutting and finer finish than conventional systems
• Three V-belts transfer maximum power to the cutterhead
• Two speed gearbox features automatic chain tensioner

Specifications:

• Maximum Depth of Cut: 3/16in
• Maximum Full Width Depth of Cut: 1/8in
• Maximum Planing Thickness: 6in
• Maximum Planing Width: 14-7/8in
• Minimum Planing Length: 8in
• Type of Cutterhead: HELICAL
• Cuts Per Minute: Not Applicable
• Number of Knives: 74 four-sided inserts
• Cutterhead Diameter: 2-7/8in
• Cutterhead Speed (RPM): 4,500
• Feed Rates (FPM): 16/20
• Table Support: 4 Column
• Cutterhead Motor: 3 HP 230V single-phase
• Motor Amps: 15
• Dust Port Outside Diameter: 4in
• Dust Collection Minimum CFM Required (CFM): 800
• Prop 65: Cancer and Reproductive Harm
• Recommended Circuit Size (Amps.): 30
• Warranty: 5 Year
• Gross Weight: 582.0
• Net weight: 568.0
