14” Bandsaw with Stand

Overview:

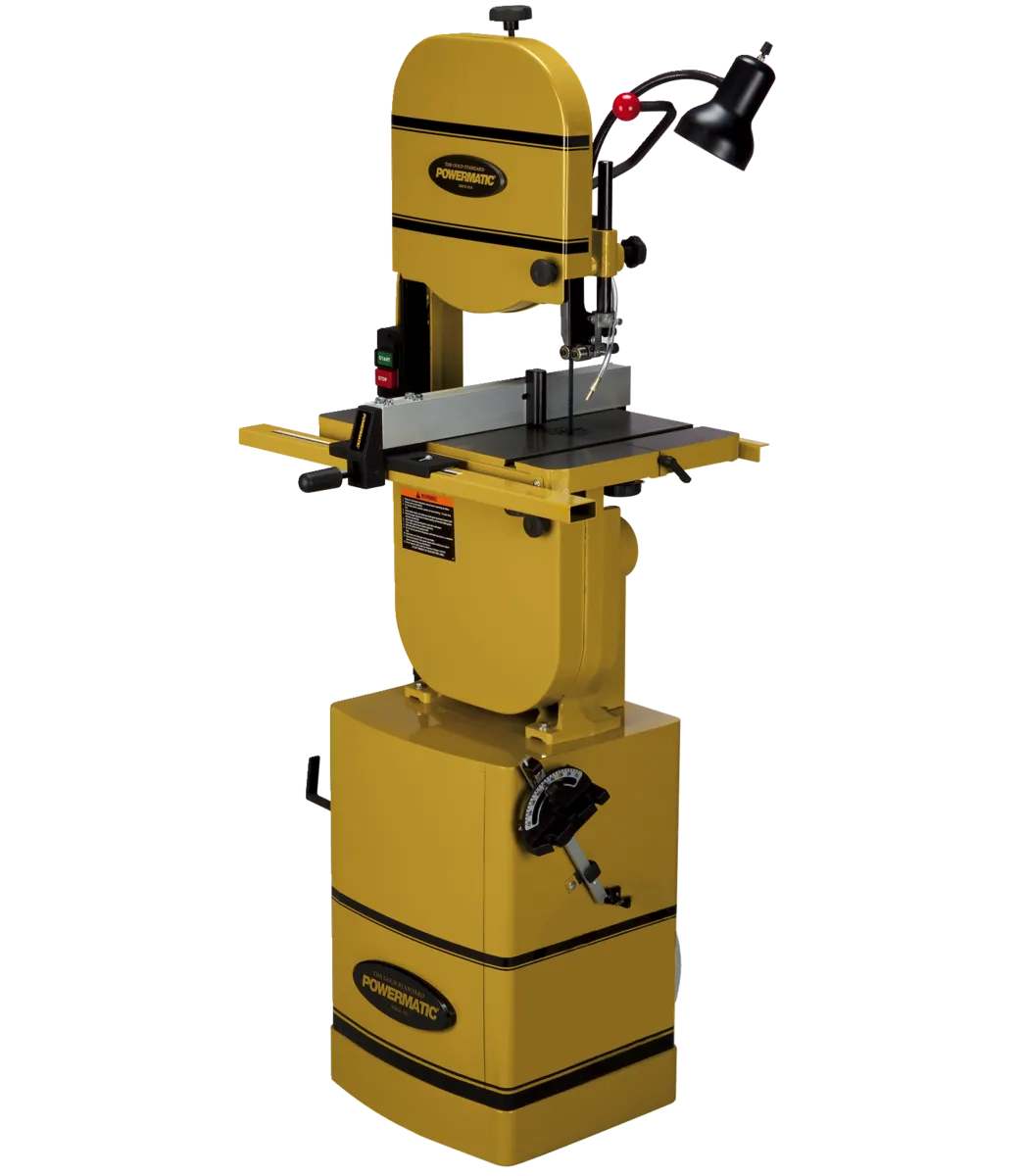

Introducing the PWBS-14CS Bandsaw. It has an extra large, two-piece cast iron table. It consists of a 15" x 15" tilting section and a fixed 15" x 5" extension for a total working surface area of 15" x 20". A balanced, nine-spoke cast iron wheel makes for smooth blade travel, and a Carter™ quick tension release lever makes blade changing easy. A micro-adjustable dual bearing blade guide system is featured above and below the table, as well as a work lamp and chip blower. A Poly-V belt maximizes power transmission while minimizing noise and vibration. It has full 6" under guide capacity with 13-1/2" frame to blade clearance. The aluminum rip fence comes with a resaw attachment.

Features:

• 60 watt adjustable lamp built into the body provides direct light on blade and work piece while cutting (bulb not included)
• Carter™ quick tension lever speeds blade changes and the detension setting extends blade life during non-use
• Chip blower ensures a clean, visible cut line
• Durable micro-adjustable dual bearing blade guide system above and below the table for close blade control with less friction
• Easy to read tensioning gauge settings indicated in "blade width" increments
• Exclusively designed, quick-release precision T-square style rip fence with 4" resaw attachment
• Precision balanced nine spoke cast iron wheels reduces vibration and creates smoother blade travel
• Rigid one-piece welded stand requires no assembly
• Upper and lower dual ball bearing guides for accurate cuts

Specifications:

• Band Saw Size/Wheel Diameter: 14in
• Blade Length: 93-1/2in
• Minimum Saw Blade Width: 1/8in
• Maximum Saw Blade Width: 3/4in
• Blade Speed (SFPM): 3000
• Table Height from Floor: 44in
• Table Tilt: 45° Right / 10° Left
• Blade Wheel Motor: 1.5 HP 115/230V single-phase, prewired 115V
• Recommended Circuit Size (Amps.): 30@115V, 20@230V
• Dust Port Outside Diameter: 4in
• Dust Collection Minimum CFM Required (CFM): 600
• Warranty: 5 Years
• Net weight: 250.0
• Gross Weight: 266.0
