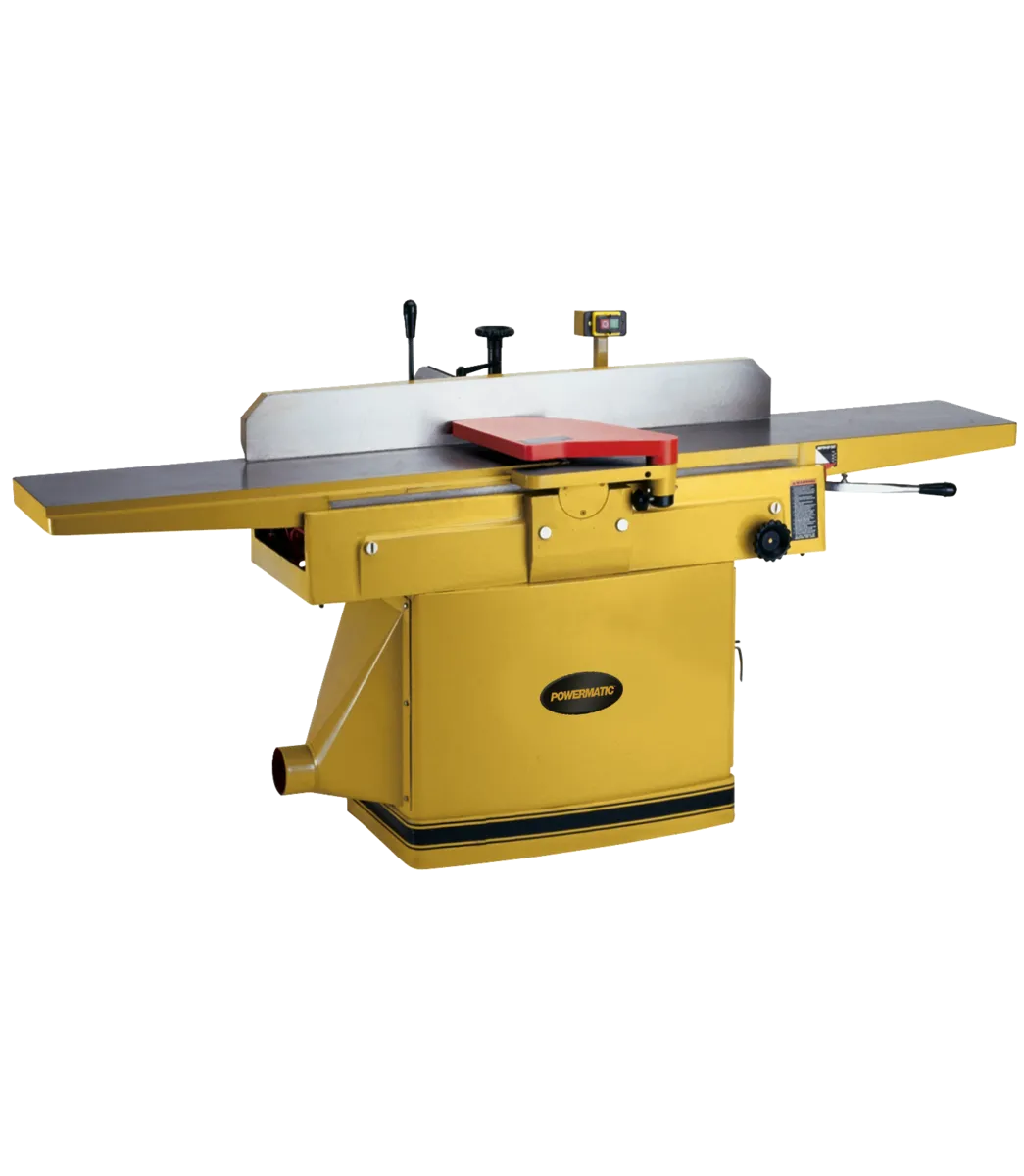

12" Jointer with Parallelogram Tables

Overview:

This 12" Jointer offers big capacity and performance in a machine that is loaded with features. Large center-mounted fence assembly adjusts easily via rack and pinion system with ram lock. Preset stops on the fence body allow for fast angle set-up at 45° in and out, and a positive stop for perfect 90° angles. The parallelogram design keeps the table in close proximity to the cutterhead for improved finish and allows for a fast depth of cut adjustment. This design also ensures the tables remain perfectly parallel even after years of tough duty. Choose either the standard straight knife cutterhead or the helical cutterhead.

Features:

• Large 12" x 84" precision ground cast iron table surface for heavy-duty work
• Parallelogram design for close table-to-cutterhead proximity and fast depth of cut adjustments
• Rack and pinion adjustable cast iron fence assembly for smooth fence positioning without play
• Table "lips" on both sides of cutterhead aid in noise reduction

General Specifications:

• Cutterhead Speed (RPM): 5,000
• Cutting Capacity (W x D): 11-3/4in x 1/8in
• Dust Collection Minimum CFM Required (CFM): 800
• Dust Port Outside Diameter (In.): 4in
• Prop 65: Cancer and Reproductive Harm
• Warranty: 5 Year
• Gross Weight: 880.0
• Net weight: 762.0
• 3-Knife Cutterhead Specs:
• Number of Knives: 3 high speed steel knives create a clean cut
• Cuts Per Minute: 15,000
• Max.Rabbeting Capacity (In.): 3/4in

• NOTE: The recommended max cutting depth for non-rabbeting cuts is 1/8”. The max cutting depth for rabbeting cuts is 1/2" as the manual has always stated.

Helical Cutterhead Specs:

• Number of Knives: 44, 42 standard, 2 rabbeting
• Cuts Per Minute: Not Applicable
• NOTE: The recommended max cutting depth for non-rabbeting cuts is 1/8”. The max cutting depth for rabbeting cuts is 1/2" as the manual has always stated.

Single-Phase Motor Specs:

• Cutterhead Motor: 3 HP 230V single-phase, prewired 230V only
• Recommended Circuit Size (Amps.): 30

3-Phase Motor Specs:

• Cutterhead Motor: 3 HP 230/460V 3-phase, prewired your choice 230V or 460V
• Recommended Circuit Size (Amps.): 30

Some 460V machines may have 3-4 week delivery times. Please contact us at 570-584-2002 ext. 301 to check if you need an order rushed. Thank you.
