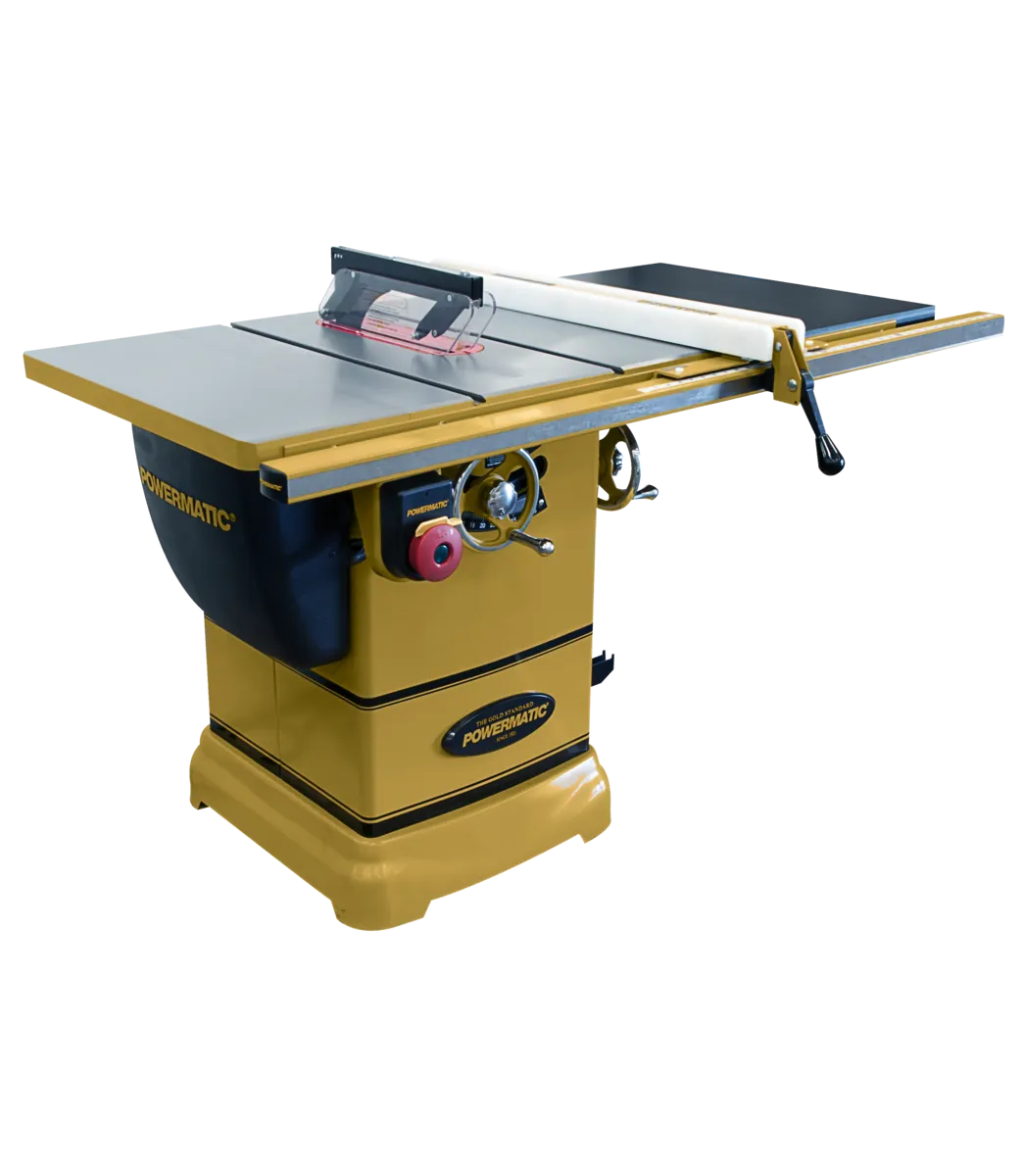

Powermatic
10” Cabinet Table Saw
10” Cabinet Table Saw
Couldn't load pickup availability
Overview:
Evolution represents a process that is never fully complete. For a woodworker, inspirations evolve as life experiences shape our creativity. Skills evolve as we share tips and techniques with friends and mentors. And our workshops evolve as we refine our skills. At Powermatic, we're proud to introduce the latest example of our own evolution, the PM1000 cabinet table saw. As with every product Powermatic builds, the PM1000 redefines the limits of design, innovation and durability.
Features:
- Blade surround and collection hose provide an unobstructed path, maximizing dust collection
- Arbor lock allows for one handed blade changes with minimal tools
- Conveniently located hands free power switch
- Ergonomically designed 7” handwheels provide momentum, making blade height and bevel adjustments easy
- Exclusive Accu-Fence provides rigidity and precision
- Precision ground cast iron work surface features a beveled edge for smoother operation
- Requires only 115V connection for easy installation
- The poly-V belt drive system reduces vibration and maximizes efficiency
- The sturdy miter gauge pivots 60 degrees to either side, allowing easy adjustment for a full range of cuts
- Toolless guard assembly with independent side leaves is easy to use, maximizing safety
General Specifications:
- Arbor Diameter: 5/8in
- Arbor Speed (RPM): 4200
- Blade Diameter: 10in
- Maximum Depth of Cut at 45°: 2-1/8in
- Maximum Depth of Cut at 90°: 3-1/8in
- Maximum Diameter of Dado: 8in
- Maximum Rip Left of Blade: 12in
- Maximum Width of Dado: 13/16in
- Table Height from Floor: 34-1/4in
- Table in Front of Saw Blade at Maximum Depth of Cut: 10in
- Table Material: Cast Iron
- Miter Gauge Type: T-Slot with Stops
- Saw Arbor Motor: 1.75 HP 115/230V single-phase, prewired 115V
- Recommended Circuit Size (Amps.): 20
- Dust Port Outside Diameter (In.): 4in
- Dust Collection Minimum CFM Required (CFM): 350
- Warranty: 5 year
Specs with 30” Rip Capacity:
- Maximum Rip Right of Blade: 30in
- Overall Dimensions (L x W x H): 43in x 61in x 44in
- Gross Weight: 417.8
- Net weight: 346.8
Specs with 52” Rip Capacity:
- Maximum Rip Right of Blade: 52in
- Overall Dimensions (L x W x H): 43in x 83in x 44in
- Gross Weight: 464.8
- Net weight: 393.8
